Product Summary
The RVS-50V100MU-R is a vertical chip type aluminum electrolytic capacitor.
Parametrics
RVS-50V100MU-R general specifications: (1)Capacitance: 10 uF; (2)Tolerance: 20 %; (3)Voltage Rating: 50 Volts; (4)ESR: 20 Ohms; (5)Operating Temperature Range: - 55 to + 105℃; (6)Dimensions: 6.3 mm Dia. x 5.3 mm L x 6.6 mm H; (7)Product: Aluminum Electrolytic Capacitors; (8)Dissipation Factor DF: 0.12; (9)Leakage Current: 3 uAmps; (10)Load Life: 1000 Hrs; (11)Packaging: Reel; (12)Ripple Current: 26 mAmps; (13)Series: RVS; (14)Factory Pack Quantity: 1000; (15)Termination Style: SMD/SMT.
Features
RVS-50V100MU-R features: (1)Compatible with surface mounting for 5.5mm high capacitors; (2)Supplied with carrier taping; (3)Guarantees 1000 hours at 105℃.

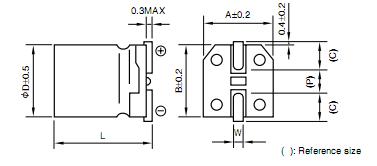

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RVS-50V100MU-R |
Elna |
Aluminum Electrolytic Capacitors - SMD 50V 10uF 6.3X5.3 |
Data Sheet |
|
|
||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||
 |
RVS-10V100M-R |
Elna |
Aluminum Electrolytic Capacitors - SMD SMD 10V 10uF |
Data Sheet |
|
|
||||||||||||||
|
RVS-10V100MU-R |
Elna |
Aluminum Electrolytic Capacitors - SMD SMD 10V 10uF |
Data Sheet |
|
|
||||||||||||||
|
RVS-10V330M-R |
Elna |
Aluminum Electrolytic Capacitors - SMD 10V 33uF 5X5.3 |
Data Sheet |
|
|
||||||||||||||
|
RVS-10V330MU-R |
Elna |
Aluminum Electrolytic Capacitors - SMD 10V 33uF 5X5.3 |
Data Sheet |
|
|
||||||||||||||
|
RVS-16V100M-R |
Elna |
Aluminum Electrolytic Capacitors - SMD 16V 10uF 4X5.3 |
Data Sheet |
Negotiable |
|
||||||||||||||
|
RVS-16V100MU-R |
Elna |
Aluminum Electrolytic Capacitors - SMD 16V 10uF 4X5.3 NCNR |
Data Sheet |
|
|
||||||||||||||
