Product Summary

The MF-USMF110-2 is a PTC Resettable Fuse. The applications of it are Game consoles, PC motherboards, USB current-limiting compliance, IEEE 1394 ports, Mobile phones, Digital cameras.

Parametrics

MF-USMF110-2 general specifications: (1)Package / Case:1210 (3225 Metric) ; (2)Packaging:Tape & Reel (TR) ; (3)Current - Hold (Ih) (Max):1.1A ; (4)Current - Trip (It):2.2A ; (5)Current - Max:40A ; (6)Voltage - Max:6V ; (7)Time to Trip:1s ; (8)R Min/Max:0.050 to 0.210 Ohm ; (9)Lead Free Status:Lead Free ; (10)RoHS Status:RoHS Compliant.

Features

MF-USMF110-2 features: (1)Fast tripping resettable circuit protection ; (2)Surface mount packaging for automated assembly; (3)Small footprint size (1210); (4)RoHS compliant; (5)Agency recognition.

Diagrams

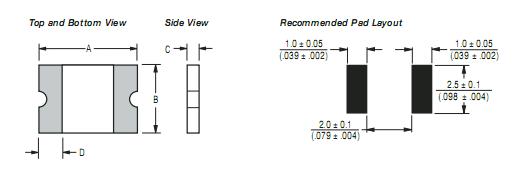

MF-USMF110-2 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MF-USMF110-2
MF-USMF110-2
Bourns
PTC Resettable Fuses 1210 6Volts 40Amps Hold 1.1A Trip 2.2A
Data Sheet
0-1: $0.18
1-50: $0.17
50-100: $0.16
100-500: $0.14
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MF-USMD050-2
MF-USMD050-2
Bourns
PTC Resettable Fuses 1210 13.2Volts 40A Hold .5A Trip 1A
Data Sheet
Negotiable
MF-USMD110-2
MF-USMD110-2
Bourns
PTC Resettable Fuses 1210 6Volts 40Amps Hold 1.1A Trip 2.2A
Data Sheet
Negotiable
MF-USMF005-2
MF-USMF005-2
Bourns
PTC Resettable Fuses 30V .05A-HD 10A MAX (R)
Data Sheet
0-1: $0.10
1-50: $0.09
50-100: $0.08
100-500: $0.07
MF-USMF010-2
MF-USMF010-2
Bourns
PTC Resettable Fuses 1210 30Volts 10Amps Hold .10A Trip .3A
Data Sheet
0-1: $0.29
1-50: $0.25
50-100: $0.23
100-500: $0.20
MF-USMF075-2
MF-USMF075-2
Bourns
PTC Resettable Fuses 1210 6Volts 40Amps Hold .75A Trip 1.5A
Data Sheet
0-1: $0.18
1-50: $0.17
50-100: $0.16
100-500: $0.14
MF-USMF150-2
MF-USMF150-2
Bourns
PTC Resettable Fuses 6VOLT 40AMP
Data Sheet
0-1: $0.47
1-50: $0.40
50-100: $0.40
100-500: $0.38
