Product Summary
The EGL41G-E3/96 is a Surface Mount Glass Passivated Ultrafast Rectifier. It is used in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer, automotive and telecommunication.
Parametrics
EGL41G-E3/96 absolute maximum ratings: (1)Polarity color bands (2nd band):YELLOW; (2)Maximum repetitive peak reverse voltage:400V; (3)Maximum RMS voltage:280V; (4)Maximum DC blocking voltage:400V; (5)Maximum average forward rectified current:1.0A; (6)Peak forward surge current:30A; (7)Operating junction and storage temperature range:-65 to +175℃.
Features
EGL41G-E3/96 features: (1)Superectifier structure for high reliability condition; (2)Cavity-free glass-passivated junction; (3)Ideal for automated placement; (4)Ultrafast reverse recovery time; (5)Low switching losses, high efficiency ; (6)High forward surge capability; (7)Meets environmental standard MIL-S-19500; (8)Meets MSL level 1, per J-STD-020, LF maximum peak of 250℃; (9)AEC-Q101 qualified; (10)Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC.

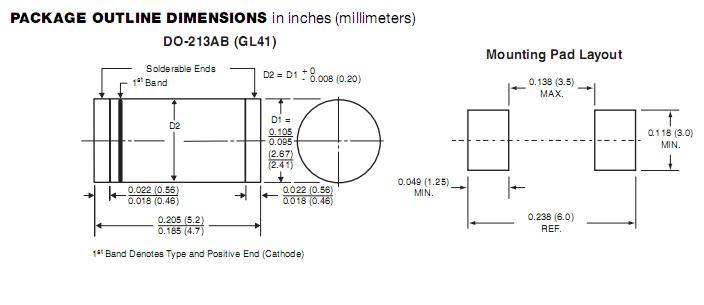

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EGL41G-E3/96 |
Vishay Semiconductors |
Rectifiers 1.0 Amp 400 Volt |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
EGL41A/46 |
Vishay Semiconductors |
Rectifiers 1.0 Amp 50 Volt |
Data Sheet |
Negotiable |
|
||||||||||||
|
EGL41A-E3/51 |
Vishay Semiconductors |
Rectifiers 50 Volt 1.0A 50ns Glass Passivated |
Data Sheet |
Negotiable |
|
||||||||||||
|
EGL41A-E3/75 |
Vishay Semiconductors |
Rectifiers 50 Volt 1.0A 50ns Glass Passivated |
Data Sheet |
Negotiable |
|
||||||||||||
|
EGL41AHE3/76 |
Vishay Semiconductors |
Rectifiers 50 Volt 1.0A 50ns Glass Passivated |
Data Sheet |
Negotiable |
|
||||||||||||
|
EGL41AHE3/97 |
Vishay Semiconductors |
Rectifiers 50 Volt 1.0A 50ns Glass Passivated |
Data Sheet |
|
|
||||||||||||
|
EGL41B-E3/96 |
Vishay Semiconductors |
Rectifiers 1.0 Amp 100 Volt |
Data Sheet |
|
|
||||||||||||
