DS75176BN/NOPB

differential TRI-STATE bus/line transceiver, 8-DIP, 5.25V, Thermal shutdown protection

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.65~0.99 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.65~0.99

PartNumber:: DS75176BN/NOPB

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Mark Mak's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-27

From Other Seller

Part Number:DS75176BN/NOPB
US $0.65 - 0.99
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

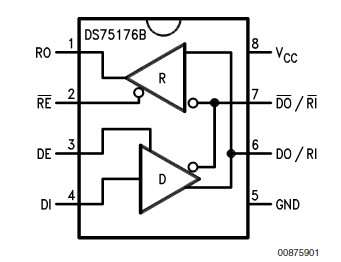

The DS75176BN/NOPB is a high speed differential TRI-STATE bus/line transceiver designed to meet the requirements of EIA standard RS485 with extended common mode range(+12V to -7V), for multipoint data transmission. In addition, the DS75176BN/NOPB is compatible with RS-422. The driver and receiver outputs feature TRI-STATE capability, for the driver outputs over the entire common mode range of +12V to -7V. Bus contention or fault situations that cause excessive power dissipation within the device are handled by a thermal shutdown circuit, which forces the driver outputs into the high impedance state.

Parametrics

DS75176BN/NOPB absolute maximum ratings: (1)Supply Voltage, VCC: 7V; (2)Control Input Voltages: 7V; (3)Driver Input Voltage: 7V; (4)Driver Output Voltages: +15V/-10V; (5)Receiver Input Voltages (DS75176B): +15V/-10V; (6)Receiver Output Voltage: 5.5V; (7)Continuous Power Dissipation @ 25℃ for M Package: 675 mW; for N Package: 900 mW; (8)Storage Temperature Range: -65℃ to +150℃; (9)Lead Temperature(Soldering, 4 seconds): 260℃; (10)ESD Rating (HBM): 500V.

Features

DS75176BN/NOPB features: (1)Meets EIA standard RS485 for multipoint bus transmission and is compatible with RS-422; (2)Small Outline (SO) Package option available for minimum board space.; (3)22 ns driver propagation delays; (4)Single +5V supply; (5)-7V to +12V bus common mode range permits ±7V ground difference between devices on the bus; (6)Thermal shutdown protection; (7)High impedance to bus with driver in TRI-STATE or with power off, over the entire common mode range allows the unused devices on the bus to be powered down; (8)Pin out compatible with DS3695/A and SN75176A/B; (9)Combined impedance of a driver output and receiver input is less than one RS485 unit load, allowing up to 32 transceivers on the bus; (10)70 mV typical receiver hysteresis.
