Product Summary
The US1G-E3/61T is a surface mount ultrafast rectifier. It is suitable for use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer, automotive and telecommunication.
Parametrics
US1G-E3/61T absolute maximum ratings: (1)Device marking code: UG ; (2)Maximum repetitive peak reverse voltage, VRRM: 400 V; (3)Maximum RMS voltage, VRMS: 280 V; (4)Maximum DC blocking voltage, VDC: 400 V; (5)Maximum average forward rectified current at TL = 110 ℃, IF(AV): 1.0 A; (6)Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load, IFSM: 30 A; (7)Operating and storage temperature range TJ, TSTG: - 55 to + 150℃.
Features
US1G-E3/61T features: (1)Low profile package; (2)Ideal for automated placement; (3)Glass passivated chip junction; (4)Ultrafast reverse recovery time; (5)Low switching losses, high efficiency; (6)High forward surge capability; (7)Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ℃; (8)Solder dip 260℃, 40 s; (9)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

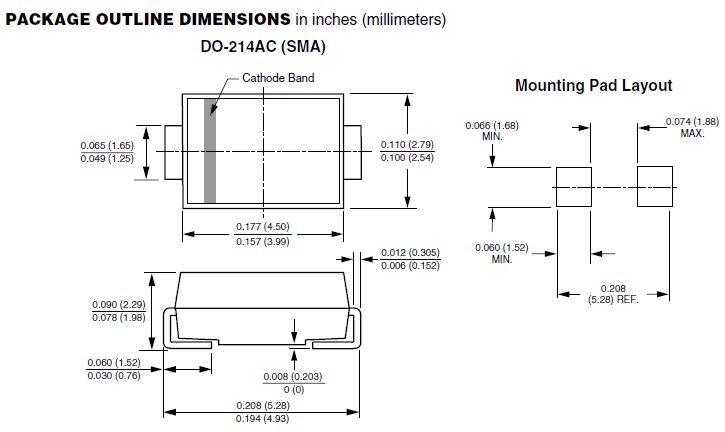

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 US1G-E3/61T |
Vishay Semiconductors |
Rectifiers 1.0 Amp 400 Volt |
Data Sheet |
|
|
||||||||||||
