Product Summary

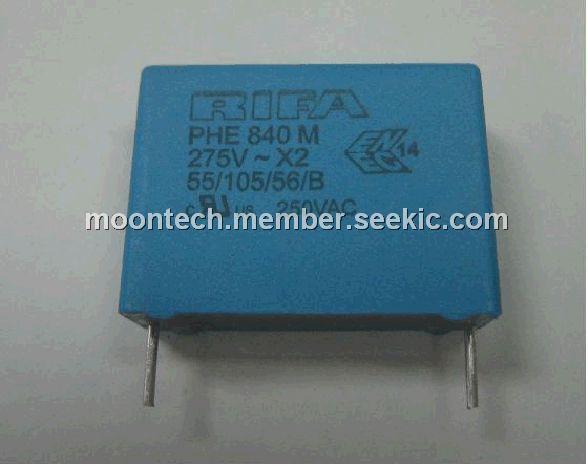

The PHE840MD6680KD18R06L2 is a Polypropylene Film Capacitor. Applications include for worldwide use as electromagnetic interference suppressor in all X2 and across-the-line applications. Not for use in series with the mains.
Parametrics
PHE840MD6680KD18R06L2 specifications: (1)Rated voltage: 275 VAC 50/60 Hz (ENEC); 280 VAC 50/60 Hz (UL, CSA); (2)Capacitance range: 0.01 – 10.0 μF; (3)Capacitance tolerance: ±20% standard, ±10% option, ±5% on request; (4)Temperature range: –55 to +105℃; (5)Climatic category: 55/105/56/B; (6)Approvals: ENEC, UL, cUL; (7)Dissipation factor: Maximum values at +23℃; (8)Insulation resistance: C ≤ 0.33 μF: ≥ 30 000 MΩ; C >0.33 μF: ≥ 10 000 s; (9)In DC applications: Recommended voltage ≤ 760 VDC.
Features
PHE840MD6680KD18R06L2 features: (1)EMI suppressor, class X2, metallized polypropylene; (2)0.01-10.0μF, 275/280 VAC, +105℃; (3)S Small dimensions including low profile capacitors.

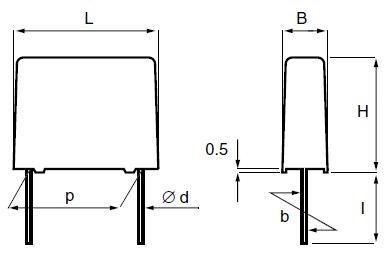

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PHE840MD6680KD18R06L2 |
Kemet |
Film Capacitors 275volts 0.68uF 10% LS 22.5mm |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
PHE820 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
PHE820EB5100MR17 |
Kemet |
Film Capacitors 300volts 0.010uF 20% LS 15mm |
Data Sheet |
|
|
||||||||||||
|
PHE820EB5150MR17 |
Kemet |
Film Capacitors 300volts 0.015uF 20% LS 15mm |
Data Sheet |
|
|
||||||||||||
|
PHE820EB5220MR17 |
Kemet |
Film Capacitors 300volts 0.022uF 20% LS 15mm |
Data Sheet |
|
|
||||||||||||
|
PHE820EB5330MR17 |
Kemet |
Film Capacitors 300volts 0.033uF 20% LS 15mm |
Data Sheet |
|
|
||||||||||||
|
PHE820EB5470MR17 |
Kemet |
Film Capacitors 300volts 0.047uF 20% LS 15mm |
Data Sheet |
|
|
||||||||||||
