Product Summary

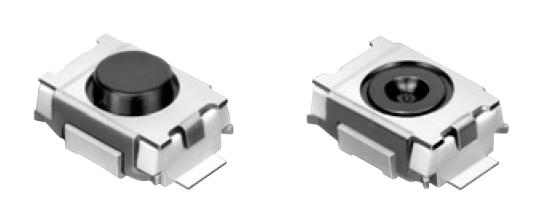

The SKRKAGE010 is a 3.9×2.9mm switch.

Parametrics

SKRKAGE010 general specifications: (1)Switch Configuration:N.O. ; (2)Pole Throw Configuration:SPST ; (3)Mounting:Surface Mount ; (4)Maximum Current Rating:0.05@12VDC A ; (5)Maximum DC Voltage Rating:12 V ; (6)Operating Force:1.57 N ; (7)Terminal Type:Gull Wing ; (8)Operating Temperature:-30 to 85℃.

Features

SKRKAGE010 feature: (1)1.5mm or 2mm stem height contribute to smaller and thinner sets.

Diagrams

SKRKAGE010 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SKRKAGE010
SKRKAGE010
ALPS
Tactile & Jog Switches 3.9X2.9X1.5mm 160gf
Data Sheet
0-1: $0.50
1-50: $0.38
50-100: $0.35
100-500: $0.29
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SKRKAAE010
SKRKAAE010
ALPS
Tactile & Jog Switches USE 688-SKRKAE
Data Sheet
Negotiable
SKRKAGE010
SKRKAGE010
ALPS
Tactile & Jog Switches 3.9X2.9X1.5mm 160gf
Data Sheet
0-1: $0.50
1-50: $0.38
50-100: $0.35
100-500: $0.29
SKRKAHE010
SKRKAHE010
ALPS
Tactile & Jog Switches 50 mAmps at 12 Volts
Data Sheet
0-1: $0.23
1-25: $0.21
25-50: $0.20
50-100: $0.19
SKRKAEE010
SKRKAEE010
ALPS
Tactile & Jog Switches 3.9x2.9x2.0mm 160gf
Data Sheet
0-1: $0.50
1-50: $0.38
50-100: $0.35
100-500: $0.29
