Product Summary

The SM06B-SRSS-TB(LF)(SN) is an Ultra-compact insulation displacement connector.

Parametrics

SM06B-SRSS-TB(LF)(SN) general specifications: (1)Current rating: 0.7A DC; (2)Voltage rating: 50V DC; (3)Temperature range: -255℃ to +85℃; (4)Contact resistance: Initial value/20mΩ max., After environmental testing/40mΩ max.; (5)Insulation resistance: 100MΩ min.; (6)Withstanding voltage: 500V AC/minute.

Features

SM06B-SRSS-TB(LF)(SN) features: (1)Ultra-compact insulation displacement connector; (2)Header designed for vacuum pick and place robotics; (3)Twin U-slot insulation displacement section; (4)3-point grip construction.

Diagrams

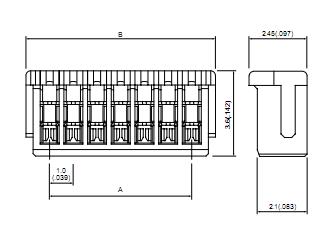

SM06B-SRSS-TB(LF)(SN) package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SM06B-SRSS-TB(LF)(SN)
SM06B-SRSS-TB(LF)(SN)
JST Sales America Inc
CONN HEADER SH 6POS SIDE 1MM TIN
Data Sheet
1-3000: $0.20
3000-6000: $0.18
6000-12000: $0.16
