Product Summary

The SMBJ11CA-E3/52 is a 600W surface mount transient voltage suppressor. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive and telecommunication.

Parametrics

SMBJ11CA-E3/52 absolute maximum ratings: (1)Peak Pulse Power Dissipation 10/1000μS Waveform (Note 1, 2)Figure 3: 600 Minimum W; (2)Peak Pulse Current on 10/1000μS Waveform (Note 1) Figure 4: See Table 1 A; (3)Peak Forward Surge Current 8.3ms Single Half Sine-Wave Superimposed on Rated Load (JEDEC Method) (Note 2, 3): 100 A; (4)Operating and Storage Temperature Range Tj, TSTG: -55 to +150℃.

Features

SMBJ11CA-E3/52 features: (1)Glass Passivated Die Construction; (2)600W Peak Pulse Power Dissipation; (3)5.0V – 170V Standoff Voltage; (4)Uni- and Bi-Directional Versions Available; (5)Excellent Clamping Capability; (6)Fast Response Time; (7)Plastic Case Material has UL Flammability Classification Rating 94V-O.

Diagrams

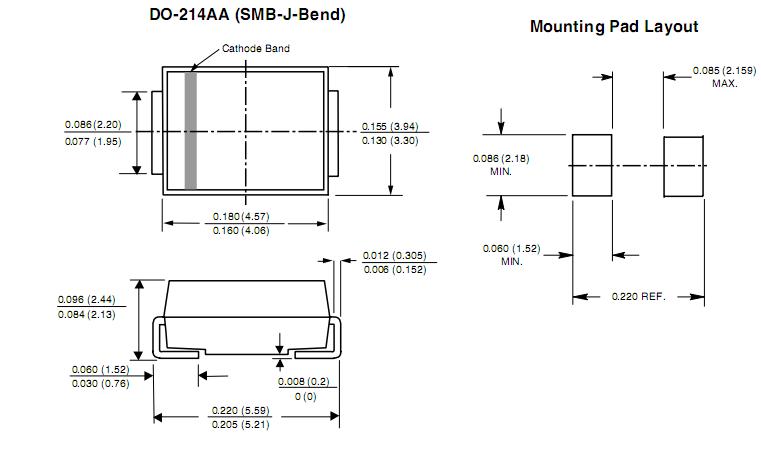

SMBJ11CA-E3/52 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SMBJ11CA-E3/52
SMBJ11CA-E3/52
Vishay Semiconductors
TVS Diodes - Transient Voltage Suppressors 600W 11V 5% Bidir
Data Sheet
0-1: $0.36
1-10: $0.29
10-50: $0.26
50-100: $0.20
