Product Summary

The NX3225SA-12.000000MHZ is a small surface-mount type crystal unit. It is especially suited for small-sizing requirements.

Parametrics

NX3225SA-12.000000MHZ general specifications: (1)Frequency Range:12MHz to 54MHz; (2)Overtone Order:fundamental; (3)Frequency Tolerance (25 ±3℃):±15*10-5; (4)Temperature Characteristics (with reference to +25℃):±15*10-5; (5)Operating Temperature Range:-10 to +75℃; (6)Drive Level:10uW; (7)Load Capacitance:8pF.

Features

NX3225SA-12.000000MHZ features: (1)Ultra compact and thin. (3.2 × 2.5 × 0.55mm typ.); (2)Excellent environmental characteristics, including heat and shock resistance; (3)Excellent electrical performance, ideal for OA (office automation), AV (audiovisual), Bluetooth and Wireless LAN applications; (4)Lead-free. Meets the requirements for re-flow profiling using lead-free solder.

Diagrams

NX3225SA-12.000000MHZ package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

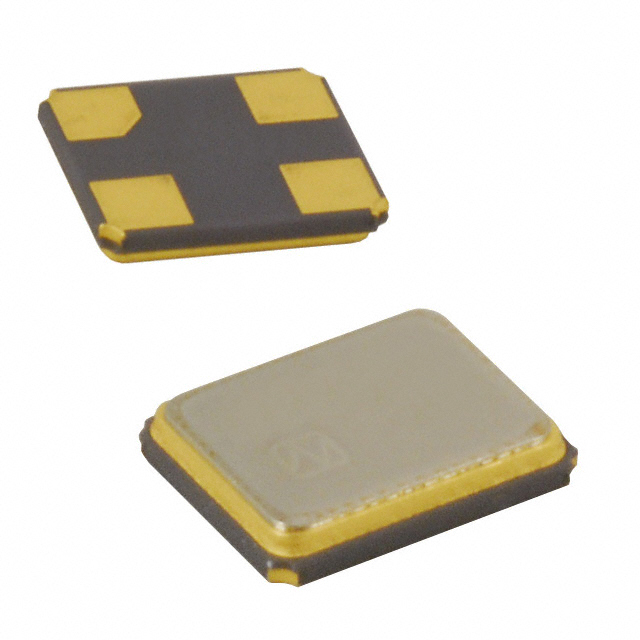

NX3225SA-12.000000MHZ
NX3225SA-12.000000MHZ
NDK (VA)
CRYSTAL 12.000000 MHZ SMD 8PF
Data Sheet
1-10: $0.37
10-50: $0.33
50-100: $0.29
NX3225SA-12.000000MHZ-STD-CSR-1
NX3225SA-12.000000MHZ-STD-CSR-1

CRYSTAL 12.000000 MHZ 8PF SMD
Data Sheet
0-1: $0.64
1-10: $0.55
10-50: $0.48
50-100: $0.38
100-500: $0.32
500-1000: $0.25
