Product Summary

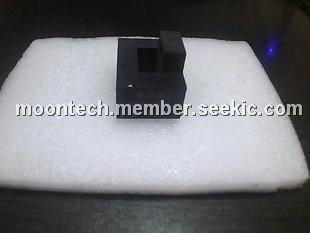

The NNC-10GA is a current transducer. It is small size and space saving, and is the only one design for wide current ratings range.
Parametrics
NNC-10GA absolute maximum ratings: (1)supply voltage: ±15V; (2)current consumption: <±18mA; (3)isolation resistance: >1000MΩ; (4)output voltage: ±4V; (5)load resistance: 10kΩ.
Features
NNC-10GA features: (1)hall effect measuring principle; (2)galvanic isolation between primary and secondry circuit; (3)isolation voltage 2500V; (4)Low power consumption; (5)extended measuring range.

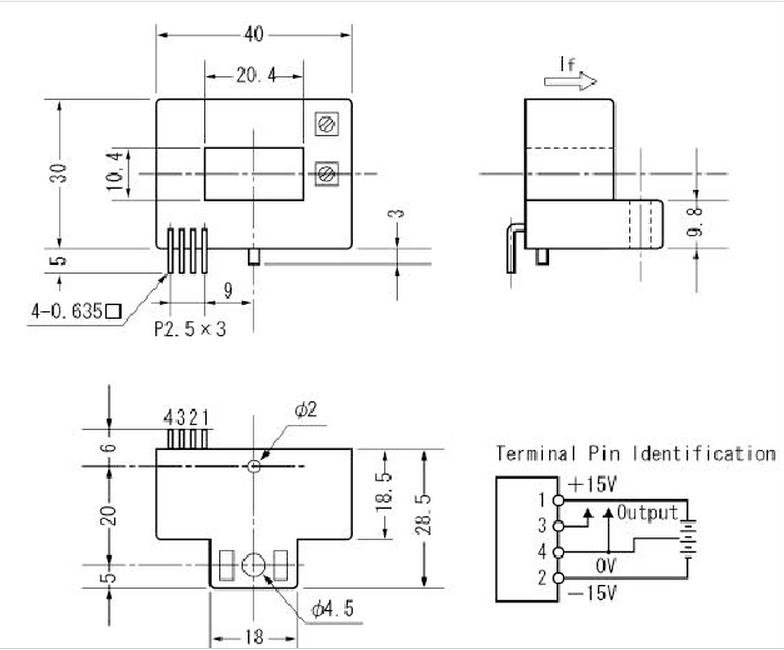

Diagrams
 |
