Product Summary

The LM5575MH/NOPB is a 75V, 1.5A Step-Down Switching Regulator. It is an easy to use SIMPLE SWITCHER buck regulator which allows design engineers to design and optimize a robust power supply using a minimum set of components. Operating with an input voltage range of 6 - 75V, the LM5575MH/NOPB delivers 1.5A of continuous output current with an integrated 330mΩ N-Channel MOSFET. The operating frequency is adjustable from 50kHz to 500kHz to allow optimization of size and efficiency. The LM5575MH/NOPB is supported by the full suite of WEBENCH On-Line design tools.

Parametrics

LM5575MH/NOPB absolute maximum ratings: (1)VIN to GND: 76V; (2)BST to GND: 90V; (3)PRE to GND: 76V; (4)SW to GND (Steady State): -1.5V; (5)BST to VCC: 76V; (6)SD, VCC to GND: 14V; (7)BST to SW: 14V; (8)OUT to GND: Limited to Vin; (9)SYNC, SS, FB, RAMP to GND: 7V; (10)ESD Rating Human Body Model: 2kV; (11)Storage Temperature Range: -65℃ to +150℃.

Features

LM5575MH/NOPB features: (1)Integrated 75V, 330mΩ N-channel MOSFET; (2)Ultra-wide input voltage range from 6V to 75V; (3)Adjustable output voltage as low as 1.225V; (4)1.5% feedback reference accuracy; (5)Operating frequency adjustable between 50kHz and 500kHz with single resistor; (6)Master or slave frequency synchronization; (7)Adjustable soft-start; (8)Emulated current mode control architecture; (9)Wide bandwidth error amplifier; (10)Built-in protection.

Diagrams

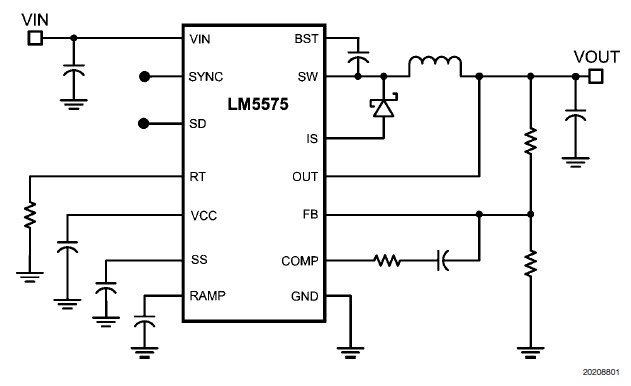

LM5575MH/NOPB diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM5575MH/NOPB
LM5575MH/NOPB
National Semiconductor (TI)
Switching Converters, Regulators & Controllers 75V,1.5Amp Buck Reg
Data Sheet
0-1: $3.43
1-25: $2.75
25-100: $2.51
100-250: $2.26
