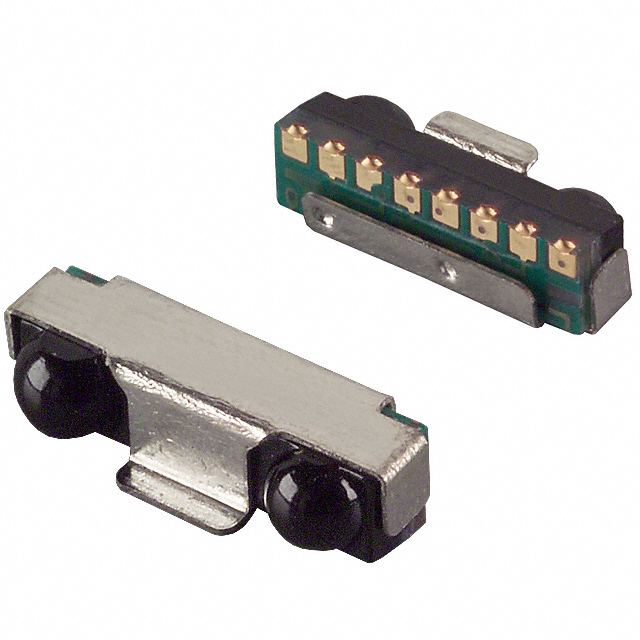

GP2W0110YPSF

Low Power Infrared Transceiver, 115.2Kbps, 8SMD, 2 V to 3.6 V, 90uA, RoHS Compliant

Rated 5 Rating 5 | reviews | Write a review

Price:: US $25.00~48.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $25.00~48.00

PartNumber:: GP2W0110YPSF

Brand:: Sharp Electrionic Components - Sharp | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Mark Mak's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-31

From Other Seller

Part Number:GP2W0110YPSF
US $25.00 - 48.00
AT45DB161B-TI

US $0.90 - 2.00 / Piece
(0) Remove
RTL8309SC

US $1.50 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The GP2W0110YPSF is a low-power, short-range infrared transceiver module. It meets the Mobile Communication Low Power Option within the IrDA Specification for the 20 cm communication range. When operating at lower supply voltages, the GP2W0110YPSF provides a reliable interface between logic and IR signals. The applications of the GP2W0110YPSF are Cellular Phones, Pagers, Smart Phones, PDAs, Electronic Wallets, Mini-Notebook PCs, Portable Printers, Portable Text Scanners.

Parametrics

GP2W0110YPSF absolute maximum ratings: (1)Supply Voltage:0 to 6.0V; (2)LED Supply Voltage:0 to 7.0V; (3)Peak Forward LED Current:60 mA; (4)Operating Temperature:-40 to +85℃; (5)Storage Temperature:-40 to +85℃; (6)Soldering Temperature:230℃.

Features

GP2W0110YPSF features: (1)IrDA Low Power Option Compatibility for Telecommunication and Mobile Terminals; (2)Industry Low Volume Package Design for a Low Power Transceiver: 7.6(W) × 2.65(D) × 2.0(H) mm, 40.28 mm3; (3)Low Power Consumption with Built-in Shut-Down Mode 0.2 μA (TYP.); (4)Low and Wide Range Operating Voltage: VDD = 2.0 V to 3.6 V, VLEDA = 2.0 V to 6.0 V; (5)Soldering Reflow Capable; (6)SMD Lead-less Package Design Provides Flexibility with either Vertical Mount or Horizontal Mount to PCBs; (7)Replaces GP2W0102YP, GP2W0104YP, and GP2W0106YP; (8)Added Features include Tri-state Output and Split-voltage Supply Capability; (9)Fully Compatible with Agilent HSDL 3201; (10)TOP View Version: GP2W0114YPS.
