Product Summary

The FSA2257MTC is a high-performance bi-directional dual Single-Pole/Double-Throw (SPDT) analog switch. This switch can be configured as either a multiplexer or a demultiplexer by select pins. The FSA2257MTC features ultra-low RON of 1.3Ω maximum at 4.5V VCC and operates over the wide VCC range of 1.65V to 5.5V. The device is fabricated with submicron CMOS technology to achieve fast switching speeds and is designed for break-before-make operation. The select input is TTL-level compatible. The applications of the FSA2257MTC include Cell Phone, PDA and Ultra-Portable.

Parametrics

FSA2257MTC absolute maximum ratings: (1)VCC, Supply Voltage: –0.5 to +6.0 V; (2)VSW, DC Switch Voltage: –0.5 to VCC +0.5 V; (3)VIN, DC Input Voltage: –0.5 to +6.0 V; (4)IIK, Input Diode Current: –50mA, Switch Current: 200mA; Peak Switch Current (pulsed at 1ms duration, <10% duty cycle): 400mA; (5)TSTG, Storage Temperature Range: –65 to +150℃; (6)TJ, Maximum Junction Temperature: +150℃; (7)TL, Lead Temperature (soldering, 10 seconds): +260℃; (8)ESD Human Body Model: 8000 V.

Features

FSA2257MTC features: (1)Maximum 1.15Ω On Resistance (RON) for 4.5V Supply; (2)0.3Ω Maximum RON Flatness for +5V Supply; (3)Space-Saving Pb-Free MicroPak Packaging; (4)Broad VCC Operating Range: 1.65V to 5.5V; (5)Fast Turn-on / Turn-off Time; (6)Break-Before-Make Enable Circuitry; (7)Over-Voltage Tolerant TTL-Compatible Control Input.

Diagrams

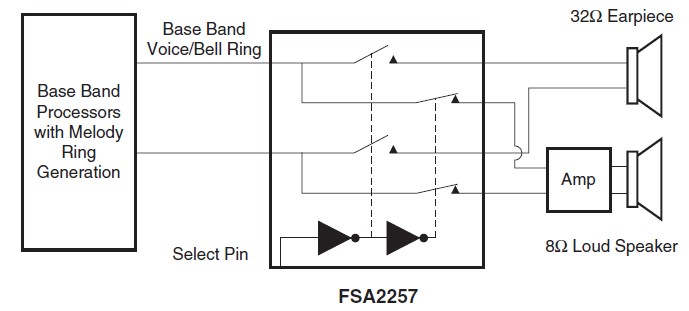

FSA2257MTC block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FSA2257MTCX
FSA2257MTCX
Fairchild Semiconductor
Analog Switch ICs FINISHED GOOD
Data Sheet
0-1700: $0.26
1700-2000: $0.24
2000-2500: $0.24
2500-5000: $0.23
