Product Summary

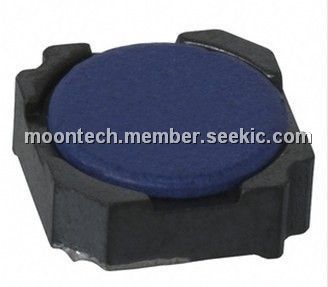

The DO3316P-473MLD is a SMT Power Inductor.

Parametrics

DO3316P-473MLD specifications: (1)L2 (μH): 47; (2)Percent tol: 20, 10; (3)DCR max (Ohms): 0.14; (4)SRF typ (MHz): 12; (5)Isat (A): 1.6; (6)Irms (A): 1.8.

Features

DO3316P-473MLD features: (1)High energy storage and very low resistance; (2)High inductance values are perfect for EL driver applications.

Diagrams

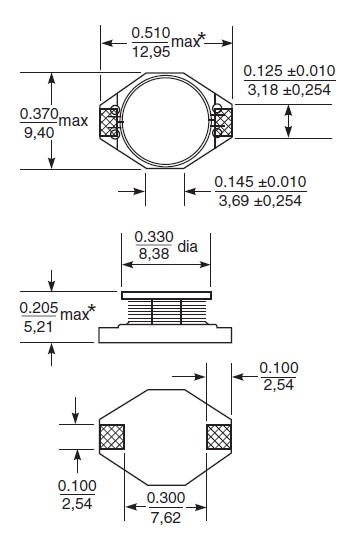

DO3316P-473MLD dimensions
