Product Summary

The B45197A7106K509 is a Tantalum chip capacitor. The applications of the B45197A7106K509 include: (1)Telecommunications (e.g. mobile phones, infrastructure); (2)Data processing (e.g. laptops, mainframes); (3)Measuring and control engineering (e.g. voltage regulators); (4)Automotive electronics (e.g. navigation systems, electronic control units); (5)Medical engineering; (6)DC/DC converters.

Parametrics

B45197A7106K509 specifications: (1)Technology: Ta-MnO2; (2)Terminals: Tinned; (3)Rated voltage (up to 85 ℃) VR: 2.5 to 50 VDC; (4)Rated capacitance (20 ℃, 120 Hz) CR: 0.15 to 1000 μF; (5)Capacitance tolerance: ±20%, ±10%; (6)Maximum equivalent series resistance(20 ℃, 100 kHz) ESRmax: 40 to 15000 mW; (7)Operating temperature range Top: -55 to +125 ℃.

Features

B45197A7106K509 features: (1)Wide variety of Low ESR values; (2)High ripple current capability; (3)High volumetric efficiency; (4)Excellent solderability; (5)Stable temperature and frequency characteristics; (6)Low leakage current, low dissipation factor; (7)Low self-inductance; (8)High resistance to shock and vibration; (9)Suitable for use without series resistor (special operating conditions recommended); (10)Lead-free and material content compatible with RoHS; (11)Some partnumbers are only available in M (±20%) tolerance; these types have a maximum capacitance drift at +125 ℃ of +20%.

Diagrams

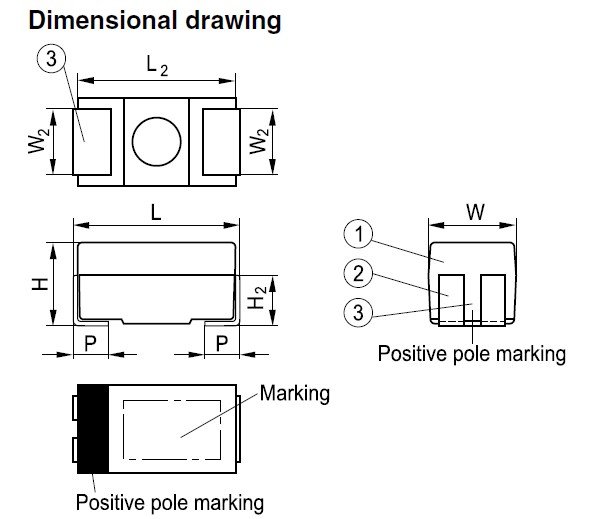

B45197A7106K509 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
B45197A7106K509
B45197A7106K509

Kemet

Tantalum Capacitors - Solid SMD 50volts 10uF 10%

Data Sheet

Negotiable
