Product Summary

The ADS7822E/250 is a 12-bit sampling analog-to-digital (A/D) converter with ensured specifications over a 2.7V to 5.25V supply range. It requires very little power even when operating at the full 75kHz rate. At lower conversion rates, the high speed of the ADS7822E/250 enables it to spend most of its time in the power-down mode—the power dissipation is less than 60μW at 7.5kHz. The ADS7822E/250 also features operation from 2.0V to 5V, a synchronous serial interface, and a pseudo-differential input. The applications of the ADS7822E/250 include: (1)battery-operated systems; (2)remote data acquisition; (3)isolated data acquisition; (4)simultaneous sampling, multi-channel systems.

Parametrics

ADS7822E/250 absolute maximum ratings: (1)VCC: +6V; (2)Analog Input: –0.3V to (VCC + 0.3V); (3)Logic Input:–0.3V to 6V; (4)Case Temperature: +100℃; (5)Junction Temperature: +150℃; (6)Storage Temperature: +125℃; (7)External Reference Voltage: +5.5V.

Features

ADS7822E/250 features: (1)75khz sampling rate; (2)micro power: 0.54mw at 75khz; 0.06mw at 7.5khz; (3)power down: 3μa max; (4)mini-dip-8, soic-8, and msop-8; (5)pseudo-differential input; (6)serial interface.

Diagrams

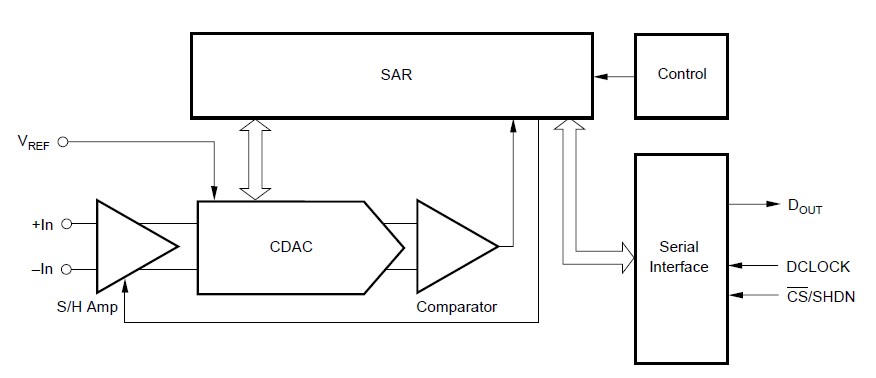

ADS7822E/250 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADS7822E/250
ADS7822E/250
Texas Instruments
ADC (A/D Converters) 12-Bit Hi-Speed 2.7V MicroPower Sampling
Data Sheet
0-1: $2.71
1-25: $2.20
25-100: $1.98
100-250: $1.90
ADS7822E/250G4
ADS7822E/250G4
Texas Instruments
ADC (A/D Converters) 12-Bit Hi-Speed 2.7V MicroPower Sampling
Data Sheet
0-1: $2.56
1-25: $2.10
25-100: $1.90
100-250: $1.75
