Product Summary
The 100YXF330M16X25 is a miniature aluminum electrolytic capacitor.
Parametrics
100YXF330M16X25 general specifications: (1)Mounting:Through Hole; (2)Capacitance Value:330μF; (3)Tolerance:20%; (4)Voltage:100V dc; (5)Ripple Current:900mA; (6)Leakage Current:3μA; (7)Lifetime:10000Hours; (8)Maximum Operating Temperature:105℃; (9)Minimum Operating Temperature:-40℃; (10)Lead Diameter:0.8mm; (11)Lead Pitch For Radial:7.5mm; (12)Construction:Radial; (13)Type:Electrolytic; (14)Product Diameter:16mm; (15)Product Height:25mm.
Features
100YXF330M16X25 features: (1)Load Life: 105℃ 2000 to 10000hours; (2)Low impedance at 100kHz with selected materials; (3)RoHS compliance.

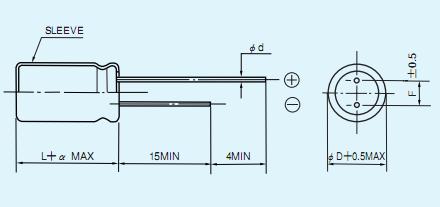

Diagrams
 |
