Product Summary

The SPI20N65C3 is a cool mos power transistor.

Parametrics

SPI20N65C3 absolute maximum ratings: (1)Continuous drain current TC = 25 ℃: 20.7A; (2)Continuous drain current TC = 100 ℃: 13.1A; (3)Pulsed drain current, tp limited by Tjmax : 62.1A; (4)Avalanche energy, single pulse ID=3.5A, VDD=50V: 690mJ; (5)Avalanche energy, repetitive tAR limited by Tjmax ID=7A,VDD=50V: 1mJ; (6)Avalanche current, repetitive tAR limited by Tjmax : 7 A; (7)Gate source voltage: ±20 V; (8)Gate source voltage AC (f ＞1Hz) : ±30 V; (9)Power dissipation, TC = 25℃: 34.5 W; (10)Operating and storage temperature: -55 to +150 ℃.

Features

SPI20N65C3 features: (1)New revolutionary high voltage technology; (2)Worldwide best RDS(on) in TO 220; (3)Ultra low gate charge; (4)Periodic avalanche rated; (5)Extreme dv/dt rated; (6)High peak current capability; (7)Improved transconductance.

Diagrams

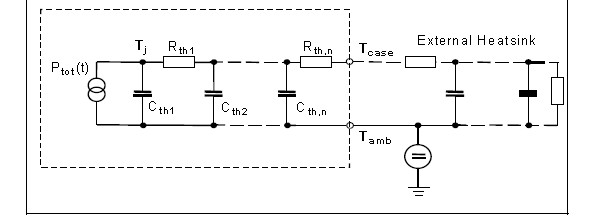

SPI20N65C3 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SPI20N65C3
SPI20N65C3
Infineon Technologies
MOSFET COOL MOS N-CH 650V 20.7A
Data Sheet
0-1: $2.93
1-10: $2.35
10-100: $2.14
100-250: $1.73
