Product Summary
The NLV32T-470J-PF is a SMD Inductor(Coil) for Signal Line(Wound). The applications of the NLV32T-470J-PF include Audio-visual equipment including TVs, VCRs and digital cameras, Electronic equipment used in communication infrastructures including xDSL and mobile base stations, Electronic equipment used in onboard automobile equipment including car audio and ECU systems and Other electronic equipment including HDDs and ODDs.
Parametrics
NLV32T-470J-PF absolute maximum ratings: (1)Operating temperature range:–40 to +105℃; (2)Storage temperature range: –40 to +105℃.
Features
NLV32T-470J-PF features: (1)This is a renewed version of NL322522; (2)The product has good heat durability that withstands lead-free compatible reflow soldering conditions; (3)Lead-free material is used for the plating on the terminal; (4)The electrical characteristics, reliability, shape and pad shape are the same as the previous NL series; (5)The product uses metal terminals, which realize excellent connection reliability; (6)Highly heat resistant thermoplastic resin is used to form the exterior package; (7)From 0.01μH to 470μH, all of the products in the E-12 series are J(±5%) tolerance products; (8)This product is in compliance with the RoHS Directive. Other products with specifications that do not include exemption regulations are also available.

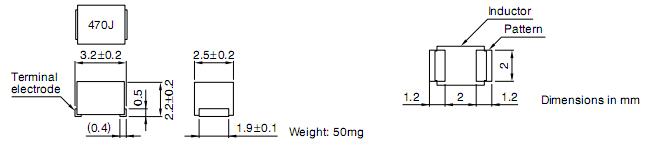

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NLV32T-470J-PF |
TDK |
Common Mode Inductors (Chokes) 47uH 5% |
Data Sheet |
|
|
||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||
|
NLV32T-010J-PF |
TDK |
Common Mode Inductors (Chokes) 0.01uH 5% |
Data Sheet |
|
|
||||||||||||||
|
NLV32T-012J-PF |
TDK |
Common Mode Inductors (Chokes) 12uH |
Data Sheet |
|
|
||||||||||||||
|
NLV32T-015J-PF |
TDK |
Common Mode Inductors (Chokes) 0.015uH 5% |
Data Sheet |
|
|
||||||||||||||
|
NLV32T-018J-PF |
TDK |
Common Mode Inductors (Chokes) 18nH 5% |
Data Sheet |
|
|
||||||||||||||
|
NLV32T-022J-PF |
TDK |
Common Mode Inductors (Chokes) 0.022uH 5% |
Data Sheet |
|
|
||||||||||||||
|
NLV32T-027J-PF |
TDK |
Common Mode Inductors (Chokes) 27 NH 5% |
Data Sheet |
|
|
||||||||||||||
