Product Summary
The LTST-C190KGKT is an ultra bright AlInGaP chip LED.
Parametrics
LTST-C190KGKT absolute maximum ratings: (1)power dissipation:75mW; (2)peak forward current:80mA; (3)continuous forward current:30mA; (4)derating linear from 50℃:0.4mA/℃; (5)reverse voltage:5V; (6)operating temperature range:-55 to +85℃; (7)storage temperature range:-55 to +85℃; (8)wave soldering condition:260℃ for 5 seconds; (9)infrared soldering condition:260℃ for 5 seconds; (10)vapor phase soldering condition:215℃ for 3 minutes.
Features
LTST-C190KGKT features: (1)ultra bright AlInGaP chip LED; (2)package in 8mm tape on 7” dimaeter reels; (3)compatible with automatic placement equipment; (4)compatible with infrared and vapor phase reflow solder process; (5)EIA STD package; (6)I.C. compatible.

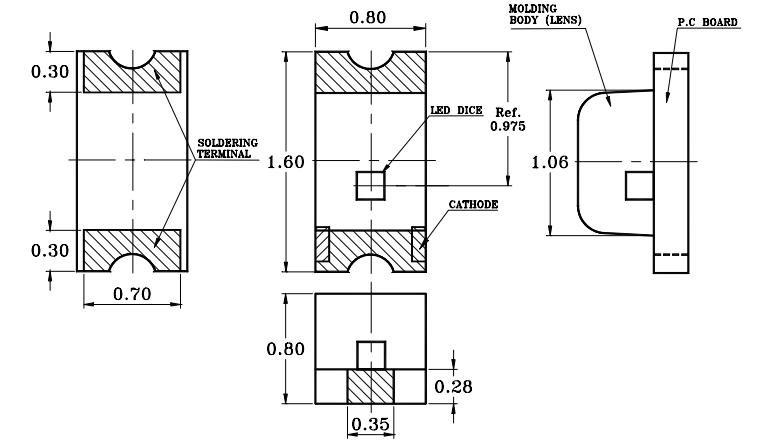

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTST-C190KGKT |
Lite-On |
Standard LED - SMD Green Clear 571nm |
Data Sheet |
|
|
||||||||||||
