Product Summary

The LQG15HS27NJ02D is a chip inductor (chip coil) for high frequency monolithic type.

Parametrics

LQG15HS27NJ02D absolute maximum ratings: (1)Inductance: 27 nH; (2)Tolerance: 5 %; (3)Maximum DC Current: 300 mAmps; (4)Maximum DC Resistance: 0.46 Ohms; (5)Self Resonant Frequency: 1700 MHz; (6)Q Minimum: 8; (7)Termination Style: SMD/SMT; (8)Package / Case: 0402 (1005 metric); (9)Dimensions: 0.5 mm W x 1 mm L x 0.5 mm H; (10)Packaging: Reel; (11)Series: LQG; (12)Standard Pack Qty: 10000; (13)Test Frequency: 100 MHz.

Features

LQG15HS27NJ02D features: (1)Packaging: Cut Tape (CT); (2)Type: Air Core; (3)Current: 300mA; (4)Mounting Type: Surface Mount ; (5)Q @ Freq: 8 @ 100MHz; (6)Self Resonant Freq: 1.7GHz; (7)DC Resistance (DCR): 460 mOhm.

Diagrams

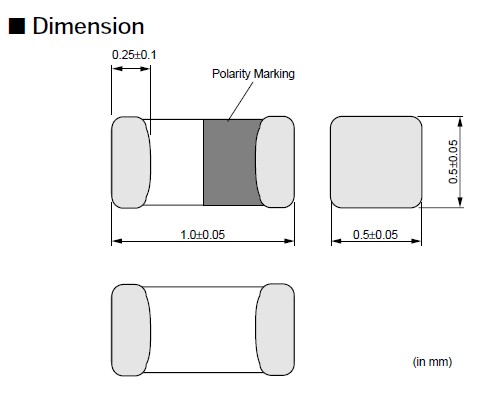

LQG15HS27NJ02D Dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LQG15HS27NJ02D
LQG15HS27NJ02D

Murata

RF Inductors 27nH 5% Hi-Freq

Data Sheet

0-1: $0.06
1-50: $0.03
50-100: $0.02
100-500: $0.02
