Product Summary

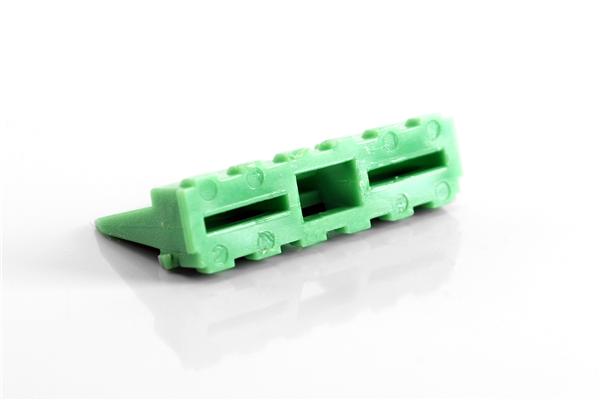

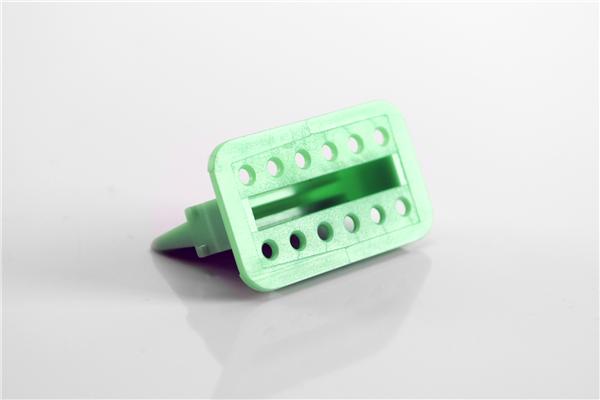

The AW12S is an Automotive Connector. It is designed as a high-performance, cost-effective solution to be used within the Heavy Equipment, Agricultural, Automotive, Military, Alternative Energy, and other demanding interconnect architectures. The AW12S has been developed to be completely compatible with all other existing standard products industry-wide.
Parametrics
AW12S general specifications: (1)Accessory Type:Wedge for Sockets ; (2)Number of Positions:12 ; (3)For Use With/Related Products:AT Series; (4)Lead Free Status:Lead Free ; (5)RoHS Status:RoHS Compliant; (6)operating temperature range:-55 to 125℃.
Features
AW12S features: (1)Housings are a thermoplastic material that is durable and has excellent UV resistance, dielectric/mechanical properties sealing system is comprised of a front and rear silicone, multi-sealing, perimeter against environmental ingress.

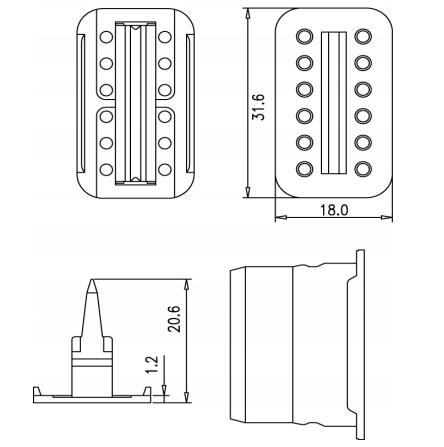

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AW12S |
Amphenol SINE Systems |
Automotive Connectors 12 Pin Plug Wedge |
Data Sheet |
|
|
||||||||||||
