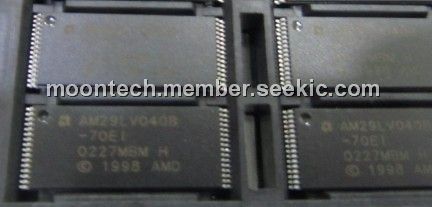

AM29LV040B-70EI

4 Megabit, CMOS 3.0 Volt-only Flash memory device, PLCC-32, 70 ns, 0.2 μA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.50~5.00

PartNumber:: AM29LV040B-70EI

Brand:: Advanced Micro Devices - AMD | Pack: SMD | D/C: 98+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Mark Mak's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-11

From Other Seller

Part Number:AM29LV040B-70EI
US $2.50 - 5.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AM29LV040B-70EI is a single power supply, 4 Mbit, 3.0 Volt-only Flash memory device organized as 524,288 bytes. The data appears on DQ0-DQ7. The AM29LV040B-70EI is available in 32-pin PLCC and 32-pin TSOP packages. All read, erase, and program operations are accomplished using only a single power supply. The AM29LV040B-70EI can also be programmed in standard EPROM programmers.

Parametrics

AM29LV040B-70EI absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –65℃ to +125℃; (3)Voltage with Respect to Ground: VCC: –0.5 V to +4.0 V, A9, OE#: –0.5 V to +12.5 V, All other pins: –0.5 V to VCC+0.5 V; (4)Output Short Circuit Current: 200 mA.

Features

AM29LV040B-70EI features: (1)Single power supply operation: Full voltage range: 2.7 to 3.6 volt read and write operations for battery-powered applications, Regulated voltage range: 3.0 to 3.6 volt read and write operations and for compatibility with high performance 3.3 volt microprocessors; (2)Manufactured on 0.32 μm process technology; (3)High performance: Full voltage range: access times as fast as 70 ns, Regulated voltage range: access times as fast as 60 ns; (4)Ultra low power consumption (typical values at 5 MHz): Automatic sleep mode: 0.2 μA, Standby mode: 0.2 μA, Read mode: 7 mA, Program/erase mode: 15 mA.
