Product Summary

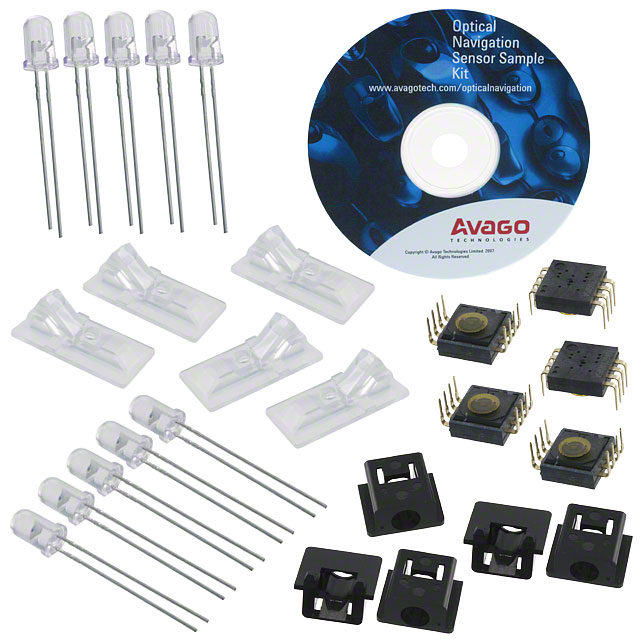

The ADNK-9503-SL11 is a LaserStream gaming sensor. It is designed to be used with ADNS-6190-002 lens forming a compact navigation system that enabled for high performance LaserStream gaming mouse application. The ADNK-9503-SL11 consists of an ADNS-9500 USB reference design gaming mouse, ADNS-9500 sensors and ADNS-6190-002 lens sample units and CD-ROM with all relevant technical literatures, software and hardware files.
Features
ADNK-9503-SL11 features: (1)LaserStreamTM navigation technology; (2)USB 2.0 Full Speed Compliant; (3)Compliance to IEC/EN 60825-1 Class 1 Eye Safety; (4)High speed motion detection at 150-200 inches per second (ips) and acceleration up to 30g; (5)16-bit USB motion data reporting ; (6)500 Hz USB rate; (7)Frame rate up tot 11,750 fps; (8)Mechanical Z-Wheel interface for vertical scroll; (9)3 standard input buttons for Left, Right and Middle ; (10)2 input buttons for On-the-Fly resolution: 56 settings from 90-5040 cpi; (11)LED indicators for resolution setting; (12)Programmable lift detection ; (13)On-board memory to store profile and SROM; (14)Read/Write access to ADNS-9500’s registers for customizable setting ; (15)In-circuit firmware upgrade.

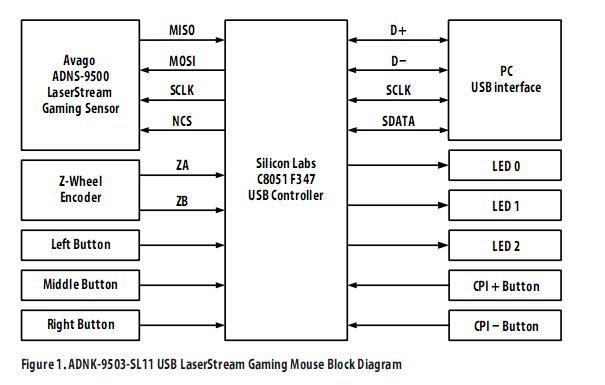

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADNK-9503-SL11 |
Avago Technologies |
Optical Sensor Development Tools Gaming Ref Kit |
Data Sheet |
Negotiable |
|
||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||
 |
ADNK-2051 |
Avago Technologies |
Optical Sensor Development Tools Reference Design Kit |
Data Sheet |
Negotiable |
|
||||||||||
|
ADNK-2052 |
Avago Technologies |
Optical Sensor Development Tools Reference Design Kit |
Data Sheet |
Negotiable |
|
||||||||||
 |
ADNK-2080 |
Avago Technologies |
Optical Sensor Development Tools Sample Kit for ADNS-2080 |
Data Sheet |
|
|
||||||||||
|
ADNK-2083-SN24 |
Avago Technologies |
Optical Sensor Development Tools Reference Design Kit for ADNS-2080 |
Data Sheet |
Negotiable |
|
||||||||||
 |
ADNK-2700 |
Avago Technologies |
Optical Sensor Development Tools Sample Kit for A2700 |
Data Sheet |
|
|
||||||||||
|
ADNK-2703 |
Avago Technologies |
Optical Sensor Development Tools Reference Design Kit for A2700 |
Data Sheet |
|
|
||||||||||
