XR17D158IV-F

Product Summary

The XR17D158IV-F is an octal PCI Bus Universal Asynchronous Receiver and Transmitter (UART) with support for PCI Bus universal VIO buffers in the same package and pin-out as the XR17C158, XR17C154 and XR17D154. The XR17D158IV-F is designed to meet the 32-bit PCI Bus and high bandwidth requirement in communication systems. A global interrupt source register provides a complete interrupt status indication for all 8 channels to speed up interrupt parsing. Applications of the XR17D158IV-F are: universal form factor pci bus add-in card, remote access servers, network management, factory automation and process control, point-of-sale systems, multi-port rs-232/rs-422/rs-485 cards.

Parametrics

XR17D158IV-F absolute maximum ratings: (1)Power Supply Range: 7 Volts; (2)Voltage at Any Pin: -0.5 to 7V; (3)Operating Temperature: -40o to +85o C; (4)Storage Temperature: -65o to +150o C; (5)Package Dissipation: 500 mW; (6)Thermal Resistance (20x20x1.4mm 144-TQFP):theta-ja = 42, theta-jc = 8.

Features

XR17D158IV-F features : (1)High Performance Octal PCI UART; (2)Universal PCI Bus Buffers - Auto-sense 33V or 5V Operation; (3)32-bit PCI Bus 23 Target Signalling Compliance; (4)A Global Interrupt Source Register for all 8 UARTs; (5)Data Transfer in Byte, Word and Double-word; (6)Data Read/Write Burst Operation; (7)Each UART is independently controlled with: 16C550 Compatible 5G Register Set; 64-byte Transmit and Receive FIFOs; Transmit and Receive FIFO Level Counters; Programmable TX and RX FIFO Trigger Level; Automatic RTS/CTS or DTR/DSR Flow Control; Automatic Xon/Xoff Software Flow Control; S485 HDX Control Output with Selectable Turn-around Delay; Infrared (IrDA 10) Data Encoder/Decoder; Programmable Data Rate with Prescaler; Up to 625 Mbps Serial Data Rate; (8)Eight Multi-Purpose Inputs/outputs; (9)A General Purpose 16-bit Timer/counter; (10)Sleep Mode with Automatic Wake-up; (11)EEPROM Interface for PCI Configuration; (12)Same Package and Pin-out as the XR17C158, XR17C154 and XR17D154.

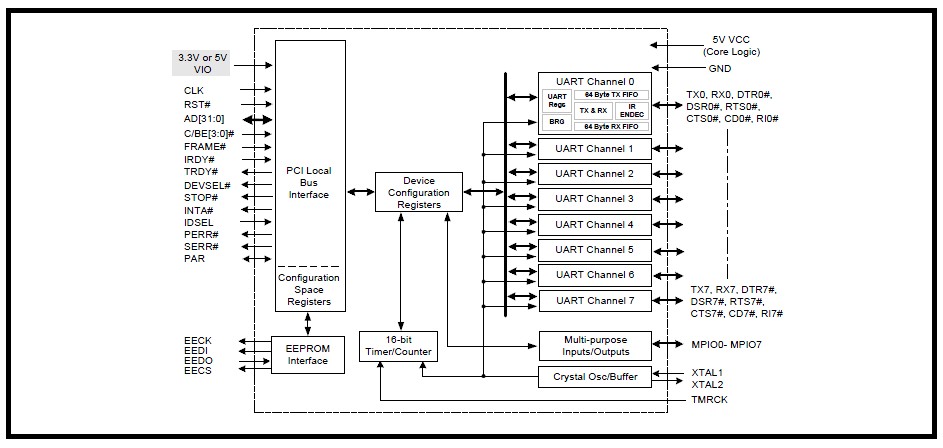

Diagrams
