Product Summary

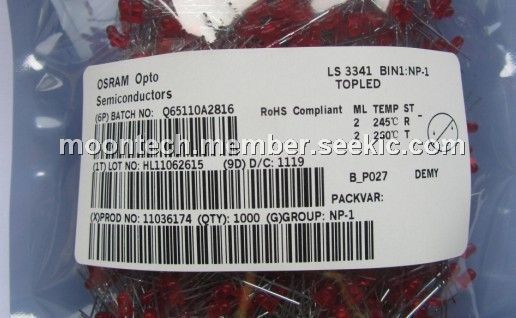

The LS3341-NP-1 is a non diffused super-bright LED. Its applications include optical indicators, coupling into light guides, backlighting (LCD, switches, keys, displays), interior automotive lighting (e.g. dashboard backlighting, etc.).
Parametrics
LS3341-NP-1 absolute maximum ratings: (1)Operating temperature range: -55 to 100℃; (2)storage temperature range: -55 to 100℃; (3)junction temperature: 100℃; (4)forward current: 30mA; (5)surge current: 0.5A.
Features
LS3341-NP-1 feature: (1)viewing angle: 40°; (2)technology: GaAlP (super-red, yellow),GaP (pure green, green); (3)optical efficiency: 1.5 lm/W (super-red, yellow), 2.5 lm/W (green), 0.6 lm/W (pure green); (4)grouping parameter: luminous intensity, wavelength; (5)soldering methods: TTW soldering; (6)packing: bulk, available taped on reel.
Diagrams
 |
