Product Summary

The 593D107X9016D2WE3 is a solid Tantalum surface mount capacitor. It offers state-of-the-art low ESR for switch Mode Power Supplies and DC/DC Converters.

Parametrics

593D107X9016D2WE3 characteristics: (1)Operating Temperature: - 55℃ to + 125℃; (2)Capacitance Range: 0.47μF to 680μF; (3)Capacitance Tolerance: ±5 %, ±10 %, ±20 %; (4)100 % Surge Current Tested (B, C, D and E Case Sizes); (5)Voltage Rating: 4VDC to 50VDC.

Features

593D107X9016D2WE3 features: (1)Terminations: 100 % Matte Tin, standard, Tin/Lead available; (2)Compliant terminations; (3)Molded case available in five case codes; (4)Compatible with high Volume automatic pick and place equipment; (5)High ripple current carrying capability; (6)Low ESR; (7)Meets IEC Specification QC300801/US0001 and EIA535BAAC mechanical and performance requirements.

Diagrams

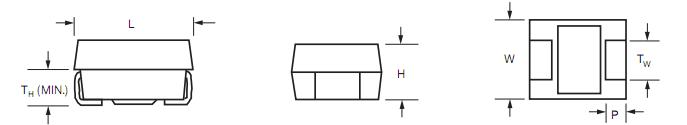

593D107X9016D2WE3 package dimensions

593D
593D
